Ürün Detayları

Bu içerik ONTECHBİLİŞİM mağazası tarafından hazırlanmıştır.

DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Arabirim	Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Ağ Medyası	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı	Fanless
Güç Kaynağı	External Power Adapter (Output: 53.5 VDC/1.31 A)

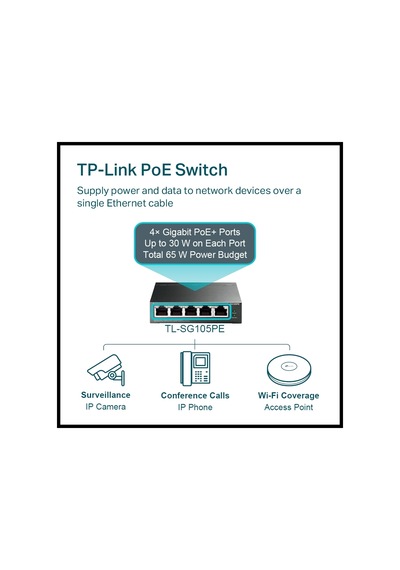

PoE Portları (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W
Boyutlar ( W X D X H )	3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Maks. Güç Tüketimi	4.52 W (220V/50Hz with no PD connected) 75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation	15.41 BTU/h (with no PD connected) 256.30 BTU/h (with 65 W PD connected)

YAZILIM ÖZELLİKLERİ
Quality of Service	Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control

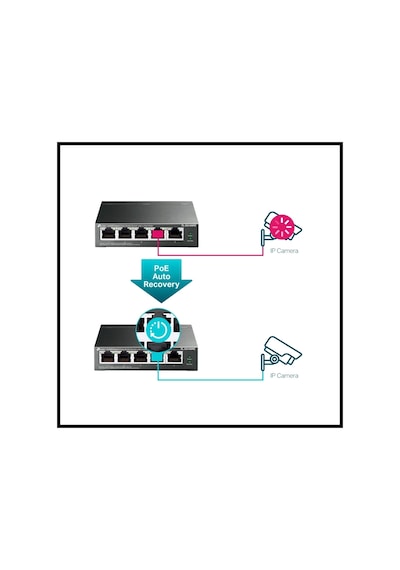

L2 Özellikleri	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Yönetim	Web-based GUI Easy Smart Configuration Utility
İletim Metodu	Store-And-Forward

DİĞERLERİ
Sertifika	FCC, CE, RoHS
Paket İçeriği	TL-SG105PE Power Adapter Installation Guide Rubber Feet
Sistem Gereksinimleri	Microsoft® Windows® for running Utility
Ortam	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing
