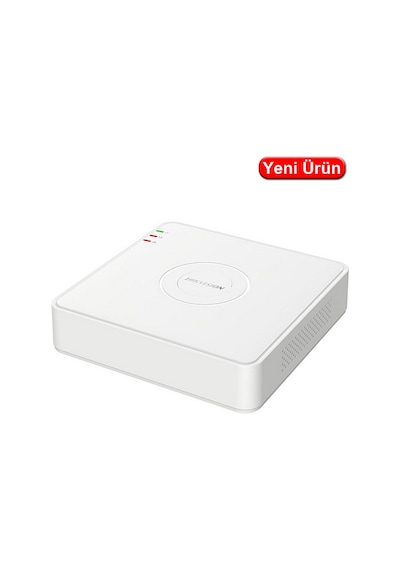

8-ch 720p Mini 1U H.265 DVR

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 10-ch IP camera input (up to 5 MP)
Encoding ability up to 1080p lite @ 15 fps
Max. 1200 m for 720p HDTVI signal

Motion Detection 2.0
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;

Video and Audio
IP Video Input : 2-ch (up to 10-ch)Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input : 8-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
AHD Input : 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : Support
HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode : HDMI/VGA simultaneous output
Audio Input : 1-ch RCA (2.0 Vp-p, 1 KΩ)8-ch via coaxial cable
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : Reuse the first audio input
Synchronous playback : 8-ch

Recording
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
Frame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate : 32 Kbps to 4 Mbps
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps

Network
Total Bandwidth : 72 Mbps
Remote Connection : 64
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
