Ürün Detayları

Bu içerik ESDSTORE mağazası tarafından hazırlanmıştır.

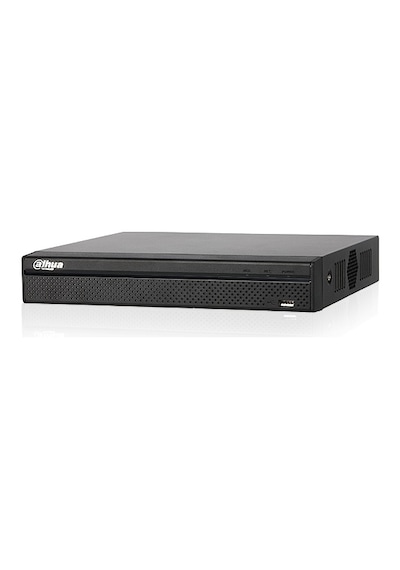

8 Kanal H.265+ NVR (1x8TB SATA)
İzleme/Kayıt Bant Genişliği: 80Mbps/80Mbps, 8 Port PoE(Tak-Çalıştır)
8 MP'ye kadar çözünürlük, 1Kanal@8MP/4Kanal@1080p Kod Çözümleme(Decoding)
Çift Yönlü Konuşma, P2P
1 HDMI, 1 VGA, 2 USB, 1 RJ45 port(10/100Mbps)

System		NVR2108HS-8P-T
Main Processor	:	Industrial-grade embedded processor
Operating System	:	Embedded Linux
Operation Interface	:	Web/operating in local GUI
Video
Access Channel	:	8 channels
Network Bandwidth	:	80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Resolution	:	8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability	:	1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS) 8–ch@720P(30FPS)
Video Output	:	1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Multi-screen Display	:	1/4/8/9
Third Party Camera Access	:	Onvif, RTSP
Compression
Video	:	Smart H.265+/Smart H.264+/H.265/H.264
Audio	:	PCM/G711A/G711U/G726/AAC
Network
Network Protocol	:	HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P
Mobile Phone Access	:	iDMSS(iOS), gDMSS(Android)
Access Standard	:	ONVIF(profile T/profile S/profile G),CGI,SDK
Browser	:	Chrome, IE9 or above, Firefox
Record Playback
Multi-channel Playback	:	Up to 8 channels playback
Record Mode	:	Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage	:	Local HDD and network
Backup	:	USB device
Playback Function	:	1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
Alarm
General Alarm	:	Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm	:	Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage	:	Video recording, snapshot, log, preset, tour
External Port
HDD	:	1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB	:	1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI	:	1
VGA	:	1
RCA Input	:	1
RCA Output	:	1
Alarm	:	None
Network	:	1 RJ–45 port (10/100 Mbps), 8 RJ–45 ports with PoE power supply (10/100 Mbps)
General Parameter
Power Supply	:	DC48V/53V, 2A/1.8A
Power Consumption	:	Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 72W, the maximum output power of a single port is 25.5W
Net Weight	:	0.84 kg (1.85 lb)
Gross weight	:	1.98 kg (4.37 lb)
Product Dimensions	:	260 mm×225 mm×47.6 mm (W × L × H)
Box Dimensions	:	87 mm×331 mm×312 mm (W × L × H)
Operating Temperature	:	-10°C to 45°C (+34°F to +113°F)
Storage Temperature	:	0°C to 40°C (+32°F to +104°F)
Operating Humidity	:	10%~93%
Storage Humidity	:	30%~85%
Operating Altitude	:	3000 m (9843 ft)
Installation	:	Desktop mounting
Certification	:	CE
