Hardware Profile
• 1/2.7 2 Megapixel progressive CMOS sensor
• 20 meter IR illumination distance
• Minimum illumination:
- 0.1 lux / F2.0 (color)
- 0.05 lux /F2.0 (B/W)
- 0 lux / F2.0 (IR-LED on)
• Built-in Infrared-Cut Removable (ICR) Filter module
• 10x digital zoom
• Minimum object distance 0.5 m
• Focal length: 2.8 mm
• Aperture: F2.0
• Angle of view:
- (H) 120В°
- (V) 66В°
- (D) 140В°
• Adjustment angle (non-motorized):
- Vertical: 30~90В°
- Horizontal: -120~120В°

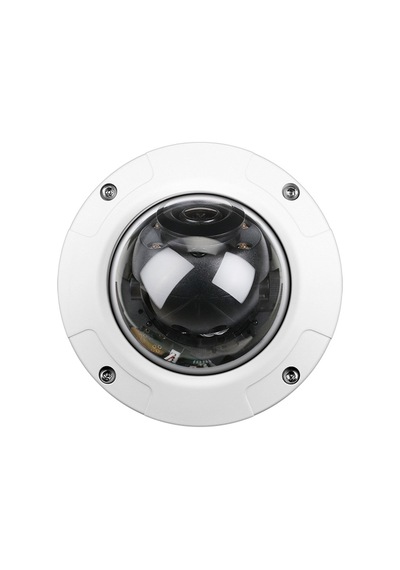

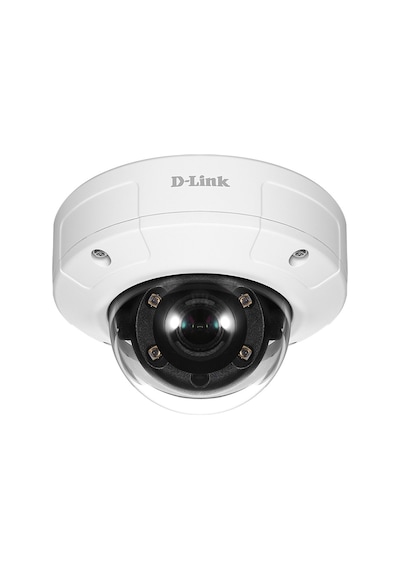

Camera Housing
• IP66 compliant weatherproof housing
• IK10 compliant vandalproof housing
Image Features
• Configurable image size, quality, frame rate, and bit rate
• Configurable motion detection windows
• Configurable privacy mask zones
• Configurable shutter speed, brightness, saturation, contrast, sharpness and 3D filter
• Auto White Balance (AWB)
• Auto Gain Control (AGC)
• Wide Dynamic Range (WDR)
• Time stamp and text overlays
Video Compression
• Simultaneous H.265/H.264/MJPEG format compression
• H.265/H.264/MJPEG multicast streaming
• JPEG for still images
Video Resolutions
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps
• 4:3 - 1600 x 1200, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480 up to 30 fps
External Device Interface
• 10/100 Base-TX Fast Ethernet port
• Supports 802.3af PoE Class 3
• microSD/SDHC/SDXC card slot*
Network Protocols
• IPv6
• IPv4
• ARP
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP/HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP/RTSP/RTCP
• IP filtering
• Multicast
• CoS
• QoS/DSCP
• SNMP
• ONVIF compliant
Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP authentication
Event Management
• Motion detection
• Tamper detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup
Remote Management
• Take snapshots/video clips and save to local hard drive via web browser
• Configuration accessible via web browser
System Requirements for Web Interface
• Operating System: Microsoft Windows 7 / 8 / 10
• Browser: Internet Explorer, Firefox, Chrome
D-ViewCam Software Functions
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen
• Remote management/control of up to 32 cameras
• Scheduled motion triggered, or manual recording options
D-ViewCam System Requirements
• Operating System:
- 32-bit: Windows 8 / 7 (SP1)
- 64-bit: Windows 10 / 8 / 7 (SP1) / Server 2012 / Server 2008 R2
• Web Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP/IP
Physical Parameters
Weight
• 365 grams В± 5%
Dimensions
• Diameter: 99 mm
• Height: 64.7 mm
Power
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC 1.5 A
Power Consumption
• 6.6 W В± 5% (PoE)
Temperature
• Operating: -30В° to 50В°C
• Storage: -20В° to 70В°C
Humidity
• Operating: 20 to 80% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• CE
• CE LVD
• FCC
• RCM
