Descripton:

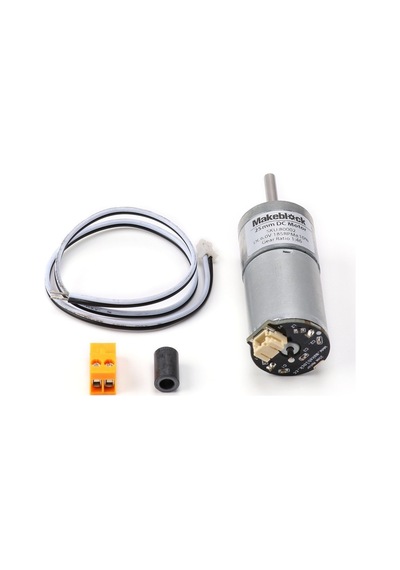

Dc motors are the most commonly used motors in Makeblock Platform. With Makeblock DC Motor-25 Brackets, they may be easy to connet to Makeblock structural components.
Size Chart (mm) :
Specification:
1. Test condition
1.1. Rated voltage: 6.0 V(DC);
1.2. Ambient temperature:+25±3?;
1.3. Ambient relative:60%±5%;
2. No-load characteristic
2.1 Gear Ratio: 1:46;
2.2 No load current:? 200 mA
2.3 No load speed: 185 ±10%rpm;
3. Load characteristic
3.1. Rated torque: 1.5±Kg.cm;
3.2. Rated current:? 650 mA;
3.3. Rated speed: 135 ±10%rpm;
3.4. Stall torque: 4.5± kg.cm;
3.5. Stall current:≥ 2.0 A;
4. Direction of Ratation:CCW
Thrust play of shaft:0.05-0.5 mm;
Radial play of shaft:? 0.02 mm;
Demo:
It can be connected with Makeblock Me Orion or Makeblock Me Dual Motor Driver V1 by adding the plug 3.96-2P on the stripped-end to control the motors.
The types of Makeblock 25mm DC Motors are as follow:
Model | Voltage(V) |
Gear Ratio | Gear BOX L(mm) |
No Load | Load | |||
Speed(rpm) | Current(mA) | Torque(Kg.cm) | Speed(rpm) | Current(Ma) | ||||
DC Motor-25 6V/650RPM | 6.0 | 1 : 10 | 19.0 | 650±10% | <=250 | 0.3± | 450±10% | <=850 |
DC Motor-25 6V/325RPM | 6.0 | 1 : 20 | 19.0 | 325±10% | <=250 | 0.5± | 230±10% | <=850 |
DC Motor-25 6V/1:46 | 6.0 | 1 : 34 | 21.0 | 185±10% | <=250 | 1.5± | 135±10% | <=700 |
DC Motor-25 6V/86RPM | 6.0 | 1 : 75 | 23.0 | 86±10% | <=250 | 2.0± | 60±10% | <=700 |
DC Motor-25 6V/30RPM | 6.0 | 1 : 217 | 25.0 | 30±10% | <=200 | 5.0± | 20±10% | <=650 |
DC Motor-25 6V/14RPM | 6.0 | 1 : 478 | 27.0 | 14±10% | <=200 | 8.0± | 10±10% | <=650 |
